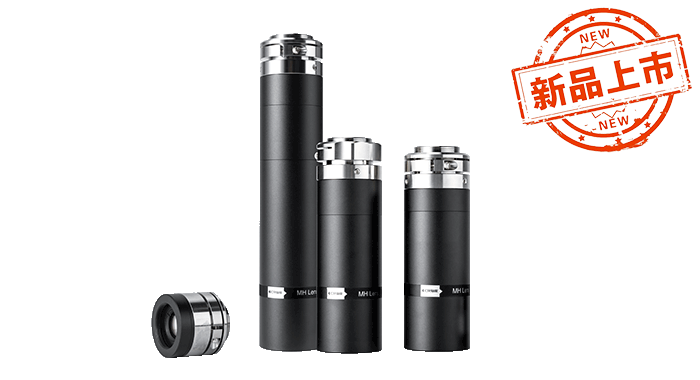

MH-1.1C系列
全新定焦近远心系列镜头
工作距离从49-1405mm，倍率从0.1-1倍均可以覆盖
体积尺寸更小，可大幅提高用户使用场景，方便安装到狭窄空间
最大支持1.1英寸C接口工业相机
较低成本、较好的像质和畸变、小FOV
- 首页> 镜头产品> 高性价比视觉定位镜头 > MH-1.1C系列
| 产品型号 | 倍率（X） | 工作距离（mm） | 物方视野φ（mm） | 像方视野（mm） | 景深（mm） | 光圈 | 分辨力（μm） | O/I (mm） | 文件预览 ( pdf ) |
查看详情 |
|---|---|---|---|---|---|---|---|---|---|---|
| XF-MH01X205-1.1C | 0.1 | 205 | 176.0 | 17.6 | 56.4 | F5.7 | 37.9 | 250.6 | 探索 | |
| XF-MH01X302B-1.1C | 0.1 | 302 | 176.0 | 17.6 | 61.7 | F5.7 | 37.8 | 352.4 | 探索 | |
| XF-MH01X382B-1.1C | 0.1 | 382 | 176.0 | 17.6 | 69.0 | F6.4 | 42.5 | 439 | 探索 | |
| XF-MH01X409-1.1C | 0.1 | 409 | 176.0 | 17.6 | 64.4 | F6.2 | 41.1 | 468.9 | 探索 | |
| XF-MH01X493-1.1C | 0.1 | 493 | 176.0 | 17.6 | 50.5 | F5.8 | 37.7 | 569.4 | 探索 | |
| XF-MH01X629-1.1C | 0.1 | 629 | 176.0 | 17.6 | 54.1 | F5.9 | 38.8 | 731.2 | 探索 | |
| XF-MH01X823-1.1C | 0.1 | 823 | 176.0 | 17.6 | 53.2 | F6 | 39.0 | 941.2 | 探索 | |
| XF-MH015X137-1.1C | 0.15 | 137 | 117.3 | 17.6 | 26.6 | F6 | 26.4 | 183.6 | 探索 | |
| XF-MH015X202B-1.1C | 0.15 | 202 | 117.3 | 17.6 | 28.4 | F5.9 | 26.0 | 253.9 | 探索 | |
| XF-MH015X255B-1.1C | 0.15 | 255 | 117.3 | 17.6 | 31.5 | F6.6 | 29.1 | 313.9 | 探索 | |
| XF-MH015X279-1.1C | 0.15 | 279 | 117.3 | 17.6 | 30.3 | F6.5 | 28.7 | 340.8 | 探索 | |
| XF-MH015X339-1.1C | 0.15 | 339 | 117.3 | 17.6 | 25.4 | F6 | 26.5 | 417.8 | 探索 | |
| XF-MH015X430-1.1C | 0.15 | 430 | 117.3 | 17.6 | 26.6 | F6.2 | 27.2 | 535.2 | 探索 | |
| XF-MH015X569-1.1C | 0.15 | 569 | 117.3 | 17.6 | 25.8 | F6.2 | 27.5 | 691.1 | 探索 | |
| XF-MH015X705-1.1C | 0.15 | 705 | 117.3 | 17.6 | 25.4 | F6.2 | 27.3 | 859.2 | 探索 | |
| XF-MH02X103-1.1C | 0.2 | 103 | 88.0 | 17.6 | 15.7 | F6.3 | 20.6 | 150.7 | 探索 | |
| XF-MH02X152B-1.1C | 0.2 | 152 | 88.0 | 17.6 | 16.4 | F6.1 | 20.1 | 205.4 | 探索 | |
| XF-MH02X192B-1.1C | 0.2 | 192 | 88.0 | 17.6 | 18.3 | F6.8 | 22.4 | 252.8 | 探索 | |
| XF-MH02X215-1.1C | 0.2 | 215 | 88.0 | 17.6 | 18.1 | F6.8 | 22.5 | 278.8 | 探索 | |
| XF-MH02X258-1.1C | 0.2 | 258 | 88.0 | 17.6 | 15.5 | F6.3 | 20.7 | 339.2 | 探索 | |
| XF-MH02X327-1.1C | 0.2 | 327 | 88.0 | 17.6 | 16.1 | F6.5 | 21.2 | 435.3 | 探索 | |
| XF-MH02X437-1.1C | 0.2 | 437 | 88.0 | 17.6 | 15.3 | F6.5 | 21.4 | 563.1 | 探索 | |
| XF-MH02X541-1.1C | 0.2 | 541 | 88.0 | 17.6 | 15.2 | F6.5 | 21.3 | 700.2 | 探索 | |
| XF-MH025X83-1.1C | 0.25 | 83 | 70.4 | 17.6 | 9.5 | F5.7 | 15.1 | 131.7 | 探索 | |
| XF-MH025X122B-1.1C | 0.25 | 122 | 70.4 | 17.6 | 10.9 | F6.3 | 16.6 | 176.9 | 探索 | |
| XF-MH025X154B-1.1C | 0.25 | 154 | 70.4 | 17.6 | 10.9 | F6.3 | 16.7 | 216.7 | 探索 | |
| XF-MH025X177-1.1C | 0.25 | 177 | 70.4 | 17.6 | 10.5 | F6.3 | 16.7 | 242.7 | 探索 | |
| XF-MH025X212-1.1C | 0.25 | 212 | 70.4 | 17.6 | 10.7 | F6.6 | 17.4 | 295.5 | 探索 | |
| XF-MH025X267-1.1C | 0.25 | 267 | 70.4 | 17.6 | 11.0 | F6.7 | 17.7 | 378.3 | 探索 | |
| XF-MH025X363-1.1C | 0.25 | 363 | 70.4 | 17.6 | 10.6 | F6.8 | 18.0 | 492.8 | 探索 | |
| XF-MH025X446-1.1C | 0.25 | 446 | 70.4 | 17.6 | 10.4 | F6.7 | 17.8 | 610 | 探索 | |
| XF-MH03X69-1.1C | 0.3 | 69 | 58.7 | 17.6 | 6.9 | F5.9 | 13.0 | 118.7 | 探索 | |
| XF-MH03X102B-1.1C | 0.3 | 102 | 58.7 | 17.6 | 6.9 | F5.7 | 12.6 | 158.4 | 探索 | |
| XF-MH03X128B-1.1C | 0.3 | 128 | 58.7 | 17.6 | 7.4 | F6.5 | 14.3 | 192.6 | 探索 | |
| XF-MH03X151-1.1C | 0.3 | 151 | 58.7 | 17.6 | 7.7 | F6.6 | 14.5 | 218.7 | 探索 | |
| XF-MH03X180-1.1C | 0.3 | 180 | 58.7 | 17.6 | 7.8 | F6.9 | 15.0 | 266 | 探索 | |
| XF-MH03X225-1.1C | 0.3 | 225 | 58.7 | 17.6 | 7.1 | F6.4 | 14.0 | 339.4 | 探索 | |
| XF-MH03X307-1.1C | 0.3 | 307 | 58.7 | 17.6 | 6.2 | F6.2 | 13.6 | 440.9 | 探索 | |
| XF-MH03X379-1.1C | 0.3 | 379 | 58.7 | 17.6 | 6.6 | F6.4 | 14.1 | 548 | 探索 | |
| XF-MH035X60-1.1C | 0.35 | 60 | 50.3 | 17.6 | 5.3 | F6.1 | 11.6 | 110.7 | 探索 | |
| XF-MH035X87B-1.1C | 0.35 | 87 | 50.3 | 17.6 | 5.2 | F5.9 | 11.1 | 144.9 | 探索 | |
| XF-MH035X110B-1.1C | 0.35 | 110 | 50.3 | 17.6 | 5.9 | F6.6 | 12.5 | 176.6 | 探索 | |
| XF-MH035X132-1.1C | 0.35 | 132 | 50.3 | 17.6 | 5.2 | F6.2 | 11.7 | 201.6 | 探索 | |
| XF-MH035X157-1.1C | 0.35 | 157 | 50.3 | 17.6 | 5.1 | F6.3 | 11.8 | 245.3 | 探索 | |
| XF-MH035X197-1.1C | 0.35 | 197 | 50.3 | 17.6 | 5.5 | F6.6 | 12.4 | 314.5 | 探索 | |
| XF-MH035X273-1.1C | 0.35 | 273 | 50.3 | 17.6 | 4.9 | F6.4 | 12.3 | 410.5 | 探索 | |
| XF-MH035X336-1.1C | 0.35 | 336 | 50.3 | 17.6 | 5.2 | F6.6 | 12.7 | 509.4 | 探索 | |
| XF-MH04X52-1.1C | 0.4 | 52 | 44.0 | 17.6 | 3.9 | F5.9 | 9.8 | 103.7 | 探索 | |
| XF-MH04X76B-1.1C | 0.4 | 76 | 44.0 | 17.6 | 4.0 | F6 | 10.0 | 135.5 | 探索 | |
| XF-MH04X96B-1.1C | 0.4 | 96 | 44.0 | 17.6 | 4.6 | F6.8 | 11.2 | 164.5 | 探索 | |
| XF-MH04X118-1.1C | 0.4 | 118 | 44.0 | 17.6 | 4.7 | F7.1 | 11.7 | 189.5 | 探索 | |
| XF-MH04X140-1.1C | 0.4 | 140 | 44.0 | 17.6 | 4.1 | F6.5 | 10.7 | 230.7 | 探索 | |
| XF-MH04X175-1.1C | 0.4 | 175 | 44.0 | 17.6 | 4.4 | F6.8 | 11.3 | 295.5 | 探索 | |
| XF-MH04X242-1.1C | 0.4 | 242 | 44.0 | 17.6 | 3.9 | F6.7 | 11.1 | 383.7 | 探索 | |
| XF-MH04X298-1.1C | 0.4 | 298 | 44.0 | 17.6 | 3.5 | F6.3 | 10.4 | 476.7 | 探索 | |
| XF-MH045X47-1.1C | 0.45 | 47 | 39.1 | 17.6 | 3.2 | F6.1 | 9.0 | 99.7 | 探索 | |
| XF-MH045X68B-1.1C | 0.45 | 68 | 39.1 | 17.6 | 3.3 | F6.2 | 9.1 | 129 | 探索 | |
| XF-MH045X86B-1.1C | 0.45 | 86 | 39.1 | 17.6 | 3.7 | F6.9 | 10.2 | 156.5 | 探索 | |
| XF-MH045X107-1.1C | 0.45 | 107 | 39.1 | 17.6 | 3.9 | F7.4 | 10.8 | 180.5 | 探索 | |
| XF-MH045X127-1.1C | 0.45 | 127 | 39.1 | 17.6 | 3.4 | F6.7 | 9.9 | 220 | 探索 | |
| XF-MH045X158-1.1C | 0.45 | 158 | 39.1 | 17.6 | 3.1 | F6.2 | 9.1 | 281.6 | 探索 | |
| XF-MH045X221-1.1C | 0.45 | 221 | 39.1 | 17.6 | 3.2 | F6.9 | 10.2 | 366.6 | 探索 | |
| XF-MH045X271-1.1C | 0.45 | 271 | 39.1 | 17.6 | 3.4 | F7.1 | 10.5 | 454.6 | 探索 | |
| XF-MH05X42-1.1C | 0.5 | 42 | 35.2 | 17.6 | 2.6 | F6.3 | 8.4 | 95.7 | 探索 | |
| XF-MH05X61B-1.1C | 0.5 | 61 | 35.2 | 17.6 | 2.8 | F6.3 | 8.4 | 123.6 | 探索 | |
| XF-MH05X77B-1.1C | 0.5 | 77 | 35.2 | 17.6 | 3.1 | F7.1 | 9.4 | 149.5 | 探索 | |
| XF-MH05X99-1.1C | 0.5 | 99 | 35.2 | 17.6 | 2.9 | F6.9 | 9.1 | 174.4 | 探索 | |
| XF-MH05X116-1.1C | 0.5 | 116 | 35.2 | 17.6 | 2.5 | F6.3 | 8.3 | 211.5 | 探索 | |
| XF-MH05X144-1.1C | 0.5 | 144 | 35.2 | 17.6 | 2.6 | F6.4 | 8.5 | 270.6 | 探索 | |
| XF-MH05X203-1.1C | 0.5 | 203 | 35.2 | 17.6 | 2.7 | F7.2 | 9.5 | 352.5 | 探索 | |
| XF-MH05X249-1.1C | 0.5 | 249 | 35.2 | 17.6 | 2.5 | F6.7 | 8.9 | 437.5 | 探索 | |
| XF-MH055X55B-1.1C | 0.55 | 55 | 32.0 | 17.6 | 2.3 | F6.5 | 7.8 | 119.1 | 探索 | |
| XF-MH055X70B-1.1C | 0.55 | 70 | 32.0 | 17.6 | 2.6 | F7.2 | 8.7 | 144.5 | 探索 | |
| XF-MH055X92-1.1C | 0.55 | 92 | 32.0 | 17.6 | 2.5 | F7.1 | 8.5 | 169.3 | 探索 | |
| XF-MH055X108-1.1C | 0.55 | 108 | 32.0 | 17.6 | 2.1 | F6.5 | 7.8 | 205.8 | 探索 | |
| XF-MH055X133-1.1C | 0.55 | 133 | 32.0 | 17.6 | 2.2 | F6.6 | 8.0 | 245.2 | 探索 | |
| XF-MH055X189-1.1C | 0.55 | 189 | 32.0 | 17.6 | 2.3 | F7.4 | 8.9 | 342.4 | 探索 | |
| XF-MH055X233-1.1C | 0.55 | 233 | 32.0 | 17.6 | 2.5 | F7.6 | 9.2 | 426 | 探索 | |
| XF-MH06X64B-1.1C | 0.6 | 64 | 29.3 | 17.6 | 2.2 | F7.4 | 8.1 | 140.4 | 探索 | |
| XF-MH06X86-1.1C | 0.6 | 86 | 29.3 | 17.6 | 2.1 | F7.3 | 8.1 | 165.3 | 探索 | |
| XF-MH06X101-1.1C | 0.6 | 101 | 29.3 | 17.6 | 1.9 | F6.7 | 7.4 | 201.2 | 探索 | |
| XF-MH06X124-1.1C | 0.6 | 124 | 29.3 | 17.6 | 1.9 | F6.8 | 7.5 | 239.2 | 探索 | |
| XF-MH06X177-1.1C | 0.6 | 177 | 29.3 | 17.6 | 2.0 | F7.7 | 8.4 | 334.4 | 探索 | |
| XF-MH06X217-1.1C | 0.6 | 217 | 29.3 | 17.6 | 1.9 | F7.2 | 7.9 | 415.3 | 探索 | |
| XF-MH065X81-1.1C | 0.65 | 81 | 27.1 | 17.6 | 1.7 | F6.8 | 6.9 | 162.2 | 探索 | |
| XF-MH065X95-1.1C | 0.65 | 95 | 27.1 | 17.6 | 1.6 | F6.9 | 7.0 | 197.6 | 探索 | |
| XF-MH065X116-1.1C | 0.65 | 116 | 27.1 | 17.6 | 1.7 | F7 | 7.2 | 251.8 | 探索 | |
| XF-MH065X167-1.1C | 0.65 | 167 | 27.1 | 17.6 | 1.6 | F7.2 | 7.3 | 328.2 | 探索 | |
| XF-MH065X204-1.1C | 0.65 | 204 | 27.1 | 17.6 | 1.7 | F7.4 | 7.0 | 407.2 | 探索 | |
| XF-MH07X77-1.1C | 0.7 | 77 | 25.1 | 17.6 | 1.5 | F7 | 6.6 | 160.1 | 探索 | |
| XF-MH07X89-1.1C | 0.7 | 89 | 25.1 | 17.6 | 1.4 | F7.1 | 6.7 | 194 | 探索 | |
| XF-MH07X109-1.1C | 0.7 | 109 | 25.1 | 17.6 | 1.5 | F7.3 | 6.8 | 247.8 | 探索 | |
| XF-MH07X158-1.1C | 0.7 | 158 | 25.1 | 17.6 | 1.4 | F7.4 | 7.0 | 323.2 | 探索 | |
| XF-MH07X193-1.1C | 0.7 | 193 | 25.1 | 17.6 | 1.5 | F7.6 | 7.2 | 401.1 | 探索 | |
| XF-MH075X73-1.1C | 0.75 | 73 | 23.5 | 17.6 | 1.3 | F7.2 | 6.4 | 158.1 | 探索 | |
| XF-MH075X85-1.1C | 0.75 | 85 | 23.5 | 17.6 | 1.3 | F7.3 | 6.5 | 192.3 | 探索 | |
| XF-MH075X104-1.1C | 0.75 | 104 | 23.5 | 17.6 | 1.3 | F7 | 6.2 | 245.9 | 探索 | |
| XF-MH075X151-1.1C | 0.75 | 151 | 23.5 | 17.6 | 1.2 | F7.6 | 6.7 | 320.1 | 探索 | |
| XF-MH075X185-1.1C | 0.75 | 185 | 23.5 | 17.6 | 1.4 | F7.8 | 6.9 | 397.3 | 探索 | |
| XF-MH08X70-1.1C | 0.8 | 70 | 22.0 | 17.6 | 1.2 | F7.4 | 6.1 | 157 | 探索 | |
| XF-MH08X81-1.1C | 0.8 | 81 | 22.0 | 17.6 | 1.1 | F7.5 | 6.2 | 190.7 | 探索 | |
| XF-MH08X98-1.1C | 0.8 | 98 | 22.0 | 17.6 | 1.2 | F7.7 | 6.3 | 243 | 探索 | |
| XF-MH08X144-1.1C | 0.8 | 144 | 22.0 | 17.6 | 1.0 | F7.2 | 5.9 | 317.1 | 探索 | |
| XF-MH08X176-1.1C | 0.8 | 176 | 22.0 | 17.6 | 1.1 | F7.5 | 6.2 | 394 | 探索 | |
| XF-MH085X75-1.1C | 0.85 | 75 | 20.7 | 17.6 | 0.9 | F7.2 | 5.4 | 188.5 | 探索 | |
| XF-MH085X94-1.1C | 0.85 | 94 | 20.7 | 17.6 | 1.0 | F7.4 | 5.8 | 242.1 | 探索 | |
| XF-MH085X138-1.1C | 0.85 | 138 | 20.7 | 17.6 | 1.0 | F8 | 6.2 | 315 | 探索 | |
| XF-MH085X169-1.1C | 0.85 | 169 | 20.7 | 17.6 | 1.1 | F8.2 | 6.4 | 391.2 | 探索 | |
| XF-MH09X133-1.1C | 0.9 | 133 | 19.6 | 17.6 | 0.9 | F8.3 | 6.1 | 313.9 | 探索 | |
| XF-MH09X162-1.1C | 0.9 | 162 | 19.6 | 17.6 | F7.9 | F7.9 | 5.8 | 389.8 | 探索 | |
| XF-MH095X129-1.1C | 0.95 | 129 | 18.5 | 17.6 | 0.9 | F8.5 | 5.9 | 313.8 | 探索 | |
| XF-MH095X156-1.1C | 0.95 | 156 | 18.5 | 17.6 | 0.9 | F8.7 | 6.0 | 388.6 | 探索 | |
| XF-MH1X125-1.1C | 1 | 125 | 17.6 | 17.6 | 0.8 | F8.7 | 5.7 | 313.8 | 探索 | |
| XF-MH1X151-1.1C | 1 | 151 | 17.6 | 17.6 | 0.8 | F8.9 | 5.9 | 388.6 | 探索 | |
| XF-MH07X275Z-1.1C | 0.7 | 275 | 15.7 | 11 | 1.5 | F7.5 | 7.1 | 541.3 | 探索 |
| 产品型号 | 倍率（X） | 工作距离（mm） | 物方视野φ（mm） | 像方视野（mm） | 景深（mm） | 光圈 | 分辨力（μm） | O/I (mm） | 文件预览 ( pdf ) |
查看详情 |
|---|
